Only for professionals

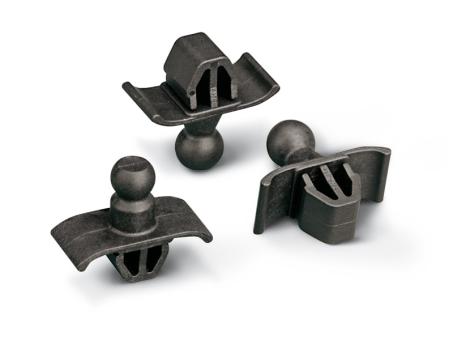

SNAPLOC® Ball studs
Installation method: Clip form | Thread length (L2): -

Ball diameter (D)

Depth (L1)

Packingunit

For further information please contact us.

Description

Ball studs | Clip connection | Various mounting geometries | Toolless assembly | Plastic component | Assembly in thin-walled components | Decoupling

technical details

Read on Hide
Installation method Clip form
RoHs conformal

Downloads

You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity
Title Language Version File Download
SNAPLOC®: Vibration and noise decoupling plug-in connections English 4350/19-V1-EN (WBH) 974.36 KB / PDF
Product Guide: Fastening and assembly technology English 1190/20-V1-EN 1.53 MB / PDF
Data sheet : Technical information and dimensions of the product English 09/2019 355.09 KB / PDF
