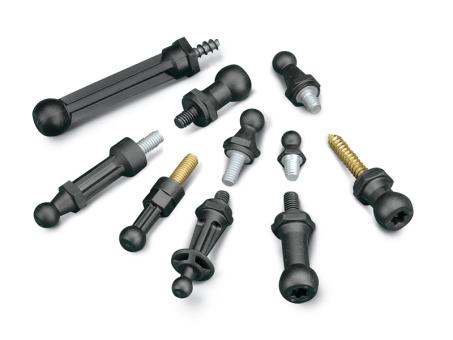

SNAPLOC® Ball studs

with metrical external thread
Installation method: Metrical external thread | Product group: Elements
SNAPLOC® Ball studs
Ball diameter (D)
7
8
10
15
Depth (L1)
9,9
11,9
12
16
18
19,4
21
24
26,3
28
29
30,8
32
34
35,1
40
43,5
51
61
Thread length (L2)
8
9
10
12
14
15
16
Packingunit (pcs.)
1000
1200
1250
1400
1500
1600
2000
2500
2800
3000
4000
10000
For further information please contact us.
Ball studs | Screw connection | Metric external thread | Integrated drive: external hex, hexalobular | Plastic - metal hybrid component | Assembly in nut thread | Decoupling
Installation method:
Metrical external thread
Product group:
Elements
