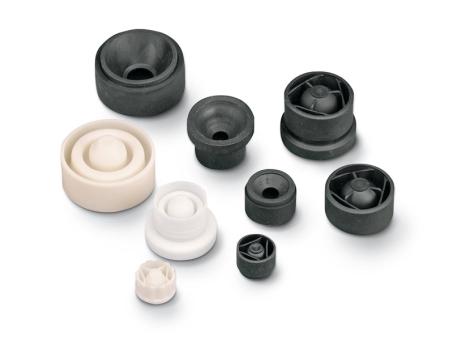

SNAPLOC® Coupling
Installation method: Multiuptake | Ball diameter (D): 10 | Depth (L1): 21 | Hardness: 70 Shore A | Material thickness (L2): 3 | Diameter (d2): 24.5 | Article number: 1000 pcs.

For further information please contact us.
Item no.: 40490100036/10

Description

Item no.: 40490100036/10
Coupling | Without collar | Elastomer | Toolless assembly | Rubber component | Various Shore hardnesses | High temperature requirements | Decoupling
EPDM Peroxid

technical details

Read on Hide
Ball diameter (D) 10
Colour black
d3 22.1
d4 32
Depth (L1) 21
Diameter (d2) 24.5
Hardness 70 Shore A
Installation method Multiuptake
L3 12,15
L4 6,85
L5 6.15
Material thickness (L2) 3
RoHS conformal

Downloads

You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity
Title Language Version File Download
SNAPLOC®: Vibration and noise decoupling plug-in connections English 4350/19-V1-EN (WBH) 974.36 KB / PDF
Product Guide: Fastening and assembly technology English 1190/22-V1-EN (WBH) 936.46 KB / PDF
Data sheet : Technical information and dimensions of the product English 09/2019 274.27 KB / PDF
