similar to ISO 4017 | DIN standard has been withdrawn

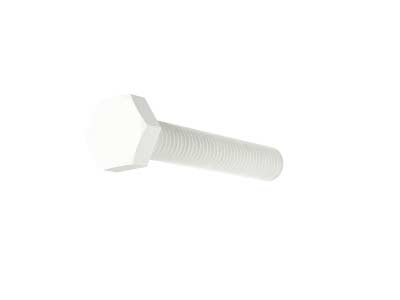

DIN 933 | plastic | natural polyamide | Cr(VI) - free | metric thread | screws can be paired with a 6h tolerance-compliant female thread
Note: Similar to ISO 4017 | DIN-standard has been withdrawn | changed spanner widths for M10, M12, M14 and M22
This standard specifies the characteristics of hexagon head bolts of product grade A and B:
Product grade A = For threads M1,6 to M24 and nominal lengths = 10d or 150 mm, whichever is the shorter
Product grade B = For threads over M24 or nominal lengths > 10d or 150 mm, whichever is the shorter.
Information about the product class can be found in the technical details of the selected article.
Note: Similar to ISO 4017 | DIN-standard has been withdrawn | changed spanner widths for M10, M12, M14 and M22
This standard specifies the characteristics of hexagon head bolts of product grade A and B:
Product grade A = For threads M1,6 to M24 and nominal lengths = 10d or 150 mm, whichever is the shorter
Product grade B = For threads over M24 or nominal lengths > 10d or 150 mm, whichever is the shorter.
Information about the product class can be found in the technical details of the selected article.
Material version:
Natural polyamide
Cr(VI) Note:
Cr(VI)-free
Flange/washer:
without flange
Risk hydrogen embrittlement:
Thread type:
Metric thread
Head shape:
Hexagon head
Force application:
Hexagon head
Material:
Plastic Natural polyamide
Installation method:
Screw into place with tool
Product type:
Cap screw with external driving feature
Product group:
Screws
RoHS conformal:
Material:
Plastic
