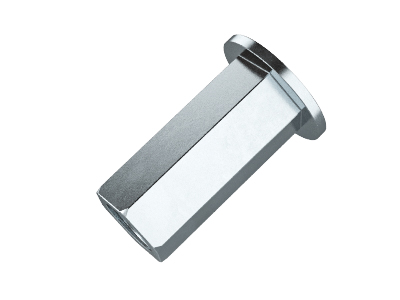

RIVKLE® HRT Blind rivet nuts High Resistance Thread
Material: Steel zinc-plated | Hole geometry: Hexagonal | Body form: Hexagonal | Head shape: Flat head | End type: Open

For further information please contact us.


Read on Hide
The HRT process (High-Resistance Thread) was the result of a further development of the RIVKLE® technology.

Progressive materials and processes allow to produce a reinforced, higher-strength thread which considerably improves the mechanical properties of the RIVKLE® blind rivet nut.

Thread as per ISO 6H (ISO 68-1) corresponding with screw property class 10 or 12 (compatible screw property classes 10.9 and 12.9).

• Higher preload forces in the joint due to higher torques
• Use of smaller thread sizes possible
• Reduced weight

technical details

Read on Hide
Head shape Flat head
Hole geometry Hexagonal
Material Steel
Surface zinc-plated


You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity
Title Language Version File Download
Product Guide: Fastening and assembly technology English 1190/20-V1-EN 1.53 MB / PDF
RIVKLE®: Blind rivet nuts and studs English 2307 19-V1 7.23 MB / PDF
Data sheet: Technical information and dimensions of the product English 02/2019 137.04 KB / PDF
