Only for professionals

HELICOIL® Plus installation mandrels with depth stop
Product type: 4160.23 | Thread type: UNC | Packingunit: 1 pcs.

Description

Read on Hide
Typ 4160.23

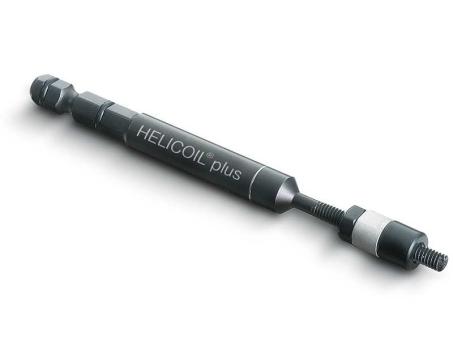

Type 4160.23 installation mandrel with depth stop to process HELICOIL® Plus coil thread inserts with UNC thread.

Suited for:
• B-S 206 cordless installation tool
• E-S 206 and E-S 410 electrical installation tools
• P-S 412 pneumatic installation tool

Properties:
• With external hexagon as per DIN 3126 – E 6.3/DIN ISO 1173

Note:
These installation mandrels can also be used as manual installation mandrels.

HELICOIL® Plus Screwlock installation mandrels are marked with a ring groove on the guide shaft. HELICOIL® Plus Free Running installation mandrels have a smooth guide shaft.

technical details

Read on Hide
Product type 4160.23
Thread type UNC

Downloads

You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity
Title Language Version File Download
Product Guide: Fastening and assembly technology English 1190/20-V1-EN (WBH) 1.53 MB / PDF
HELICOIL® Plus: Thread technology for high-strength fastenings – metric threads English 0100/16.02 2.87 MB / PDF
HELICOIL® Plus: Thread technology for high-strength fastenings - imperial threads English 0101/15.02 3.41 MB / PDF
Data sheet: Technical information and dimensions of the product English 08/2021 471.95 KB / PDF
