HELICOIL® manual installation tool
Product type: H-PM | Thread type: UNC | Packingunit: 1 pcs.


Read on Hide
Typ H-PM

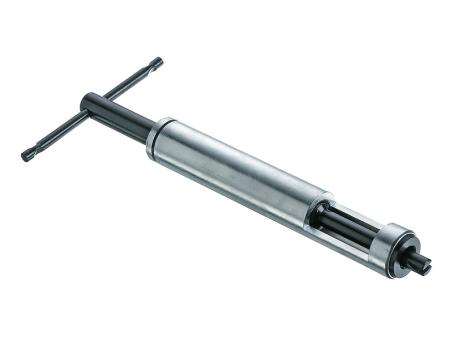

The H-PM manual installation tool allows an easy installation of HELICOIL® Classic and HELICOIL® Plus thread inserts. The tool features a leader cartridge, a threaded mandrel and a depth stop and fits UNC threads (American National coarse thread).

Only required for HELICOIL® Plus for fine screw threads and special applications. As an alternative, a HELICOIL® Plus installation mandrel can be used.

• No pitch control
• With depth stop
• With leader cartridge
• For HELICOIL® Classic, HELICOIL® Plus Free Running and HELICOIL® Plus Screwlock

technical details

Read on Hide
Product type H-PM
Thread type UNC


You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity
Title Language Version File Download
HELICOIL® Plus: Thread technology for high-strength fastenings - imperial threads English 0101/15.02 3.41 MB / PDF
HELICOIL® Plus: Thread technology for high-strength fastenings – metric threads English 0100/16.02 2.87 MB / PDF
Product Guide: Fastening and assembly technology English 1190/20-V1-EN (WBH) 1.53 MB / PDF
Data sheet: Technical information and dimensions of the product English 08/2021 491.32 KB / PDF
