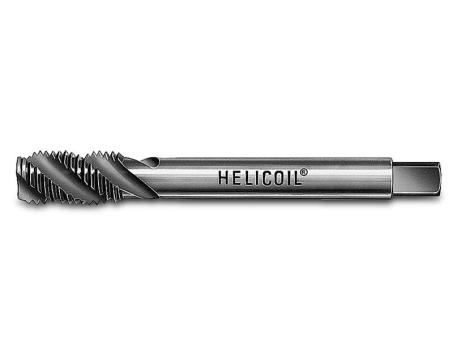

Type 0141.4 HELICOIL® machine tap to create holding threads for HELICOIL® thread inserts with UNF threads as per NASM33527. The tap is suited for blind holes.
Properties:
• Spiral flute 45° right-hand spiral
• 2-pitch chamfer
• 15 % cutting angle
• For wrought aluminium alloys with 500 N/mm² strength max.
• Also for cast aluminium alloys with very low Si content (≤ 2 %)
• Tolerance class 2B
Properties:
• Spiral flute 45° right-hand spiral
• 2-pitch chamfer
• 15 % cutting angle
• For wrought aluminium alloys with 500 N/mm² strength max.
• Also for cast aluminium alloys with very low Si content (≤ 2 %)
• Tolerance class 2B
Thread type:
UNF
Product type:
Machine taps
Product group:
Accessories
Product type:
0141.4
