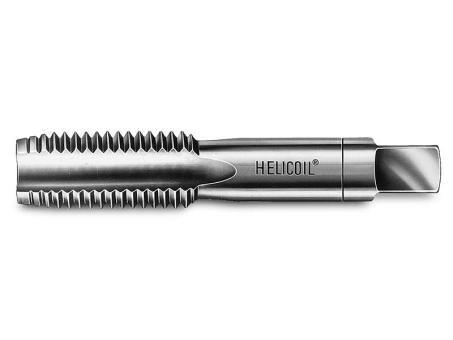

Type 0141.1 HELICOIL® machine tap to create holding threads for HELICOIL® thread inserts with British Standard Pipe Threads (BSP/G) as per NASM33537. The tap is suited for through holes and blind holes with a deeper tap hole.
Properties:
• Straight-fluted
• With spiral point
• 2-pitch chamfer
• 10 % cutting angle
• For materials with 850 N/mm² strength max.
• Tolerance class 2B
Properties:
• Straight-fluted
• With spiral point
• 2-pitch chamfer
• 10 % cutting angle
• For materials with 850 N/mm² strength max.
• Tolerance class 2B
Thread type:
BSP/G
Product type:
Machine taps
Product group:
Accessories
Product type:
0141.1
Product Guide: 360° Joining Technology
HELICOIL® Plus thread technology: Intelligent system solution comprising a fastener and efficient processing for high-strength screw joints
